| Name: | Periscope Prism |
|---|---|
| Materials: | Sapphire/BK7/Quartz |
| Dimensions: | From 1mm~300mm |
| Width: | From 1mm~300mm |
| Tolerance: | Up to ±0.02mm |
| Surface Quality: | S/D 80/50~10/5 Per Mil-Prt-13830 |
| Surface Flatness: | Up to λ/10 @633nm Per Inch |
| Parallelism: | Up to 10 arcsec |
| Coating: | AR/ Reflective/ Black Varnish |
| Chamfer: | As request angle or radius |
Product Description

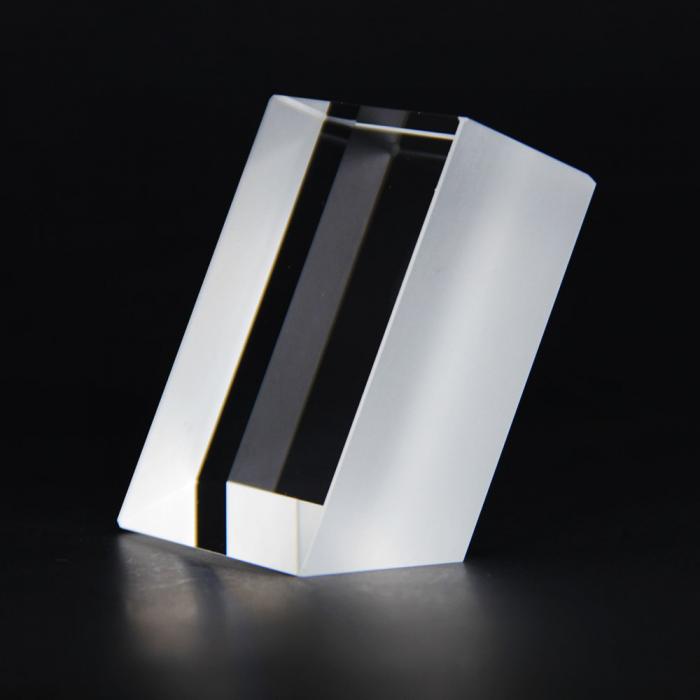

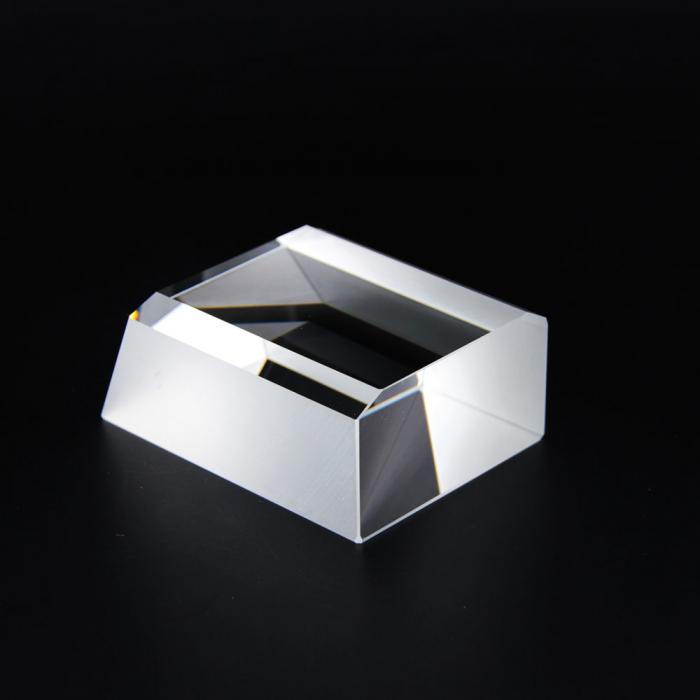

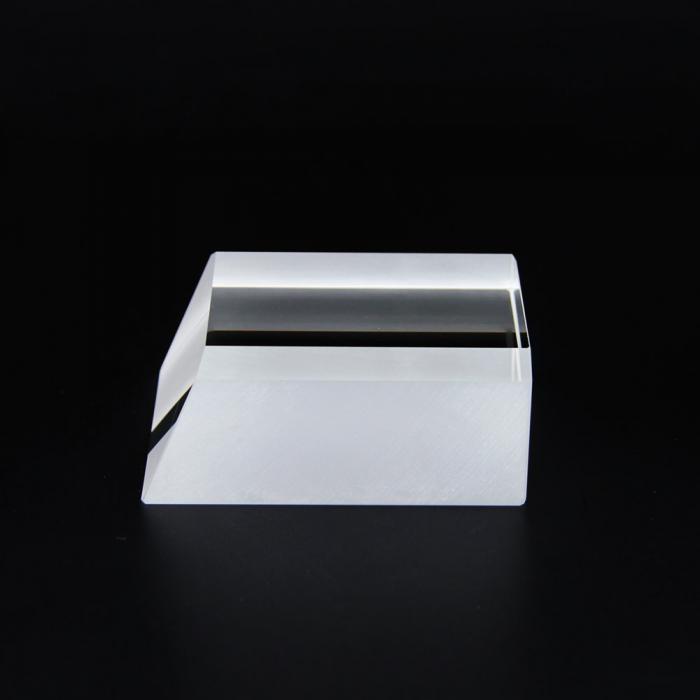

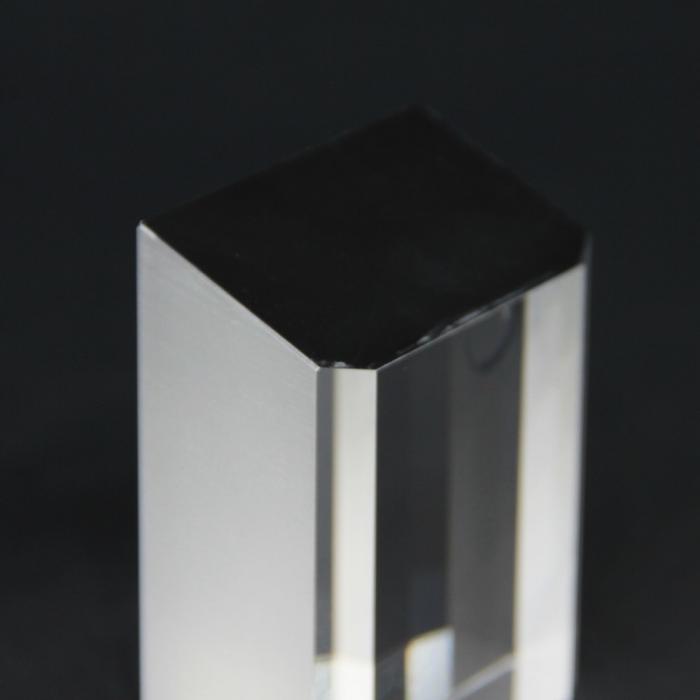

.Periscope Prism
.Materials:
Fit Optics can meet your precise machined specifications within the materials of BK7, Fused silica, Sapphire, Quartz, and Silicon.Please Just Send Us Your Parts Drawings, We Should Quote You In 24 Hours!
.Typical Applications:
1.Periscopes
2.Projecters
