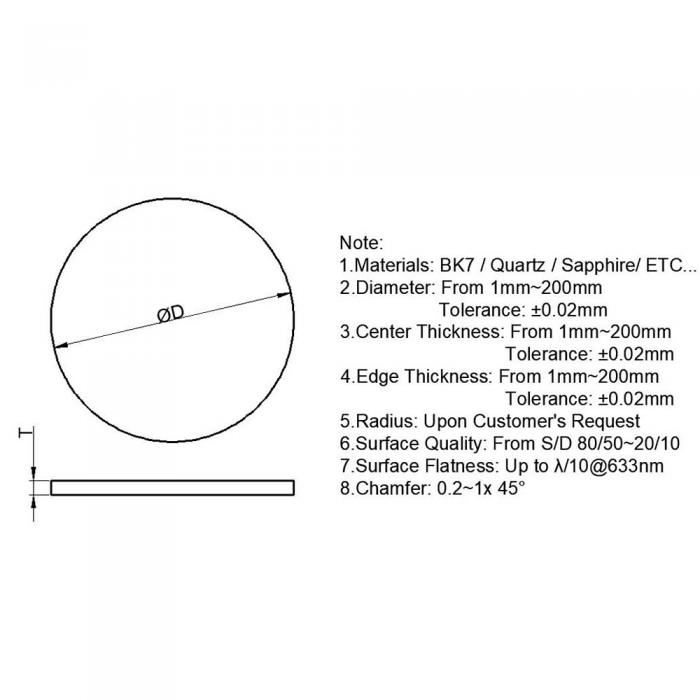

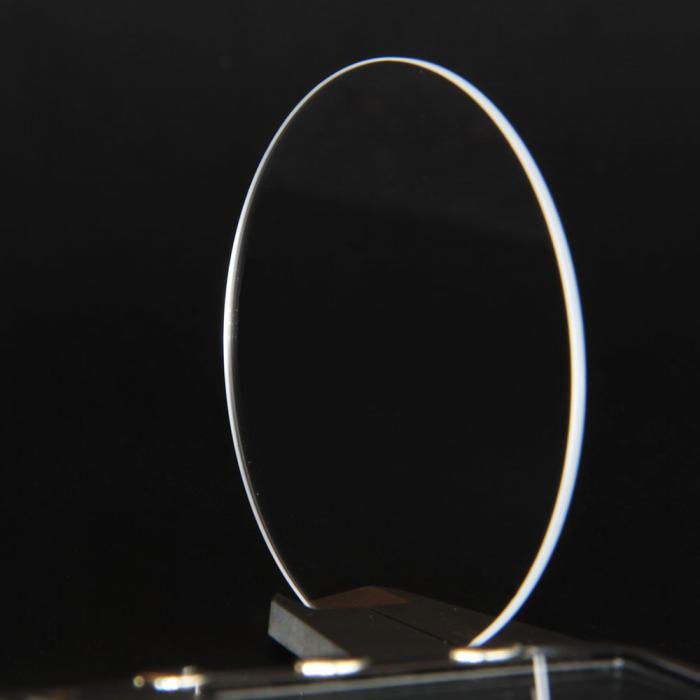

.Quartz Round Window

.What is Quartz:

UV Quartz is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

.Key Features Of Quartz Glass:

1.Excellent Ultraviolet Transmission Capacity

   ZS-1(JGS1): Good at 185~2500nm - Far Ultraviolet Quartz

   ZS-2(JGS2): Good at 220~2500nm - Ultraviolet Quartz

   ZS-3(JGS3): Good at 260~3500nm - Infrared Quartz

2.Low Thermal Expansivity (Lower Than BK7 And Sapphire)

3.Max Working Temperature @1100℃

.Typical Applications:

1.Gas & Air Analyzers/Monitors,UV & IR Detectors;

2.High Powe Laser System

3.High Intensity Lamps

4.Imaging System

5.View Ports

.About Our Materials:

Our materials are purchased from the most biggest optical materials supplier in the world: CDGM Optical Glass. The glass from CDGM have similar optical properties as Schott Glass with lower price, to save our customer's buget, we consider CDGM Optical Glass first! If you still want to use Schott Glass, Please tell us with the specifications in the drawings!

We can custom all series optical materials from CDGM,  Just tell us the trade mark of the glass.If you don't know the mark numbers please seek in the catalog of CDGM Glass.

Download CDGM Optical Glass Catalog
