| Name: | Step WIndow |
|---|---|
| Materials: | Sapphire/BK7/Quartz |
| Dimensions: | From 1mm~200mm |
| Thickness: | From 0.2mm~100mm |
| Tolerance: | Up to ±0.02mm |
| Corner Radius: | Smallest can be 0.5mm |
| Surface Quality: | S/D 80/50~10/5 Per Mil-Prt-13830 |
| Surface Flatness: | Up to λ/10 @633nm |
| Parallelism: | Up to 10arcsec |
| Coating: | AR/ Reflective/ Cut Off/ Band Pass |
Product Description

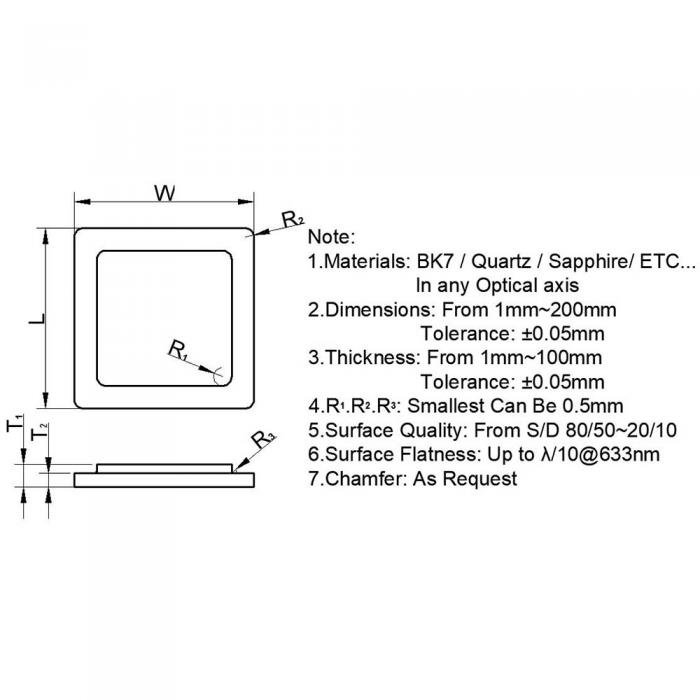

.Step Optical Window
.Materials:
Fit Optics can meet your precise machined specifications within the materials of BK7, Fused silica, Sapphire, Quartz, and Silicon.Please Just Send Us Your Parts Drawings, We Should Quote You In 24 Hours!
.Typical Applications:
1.Gas & Air Analyzers/Monitors,UV & IR Detectors;
2.Bar Code Readers
3.View Ports
