Name: | Wedge Square Window |
---|---|
Materials: | Schott BK7/ CDGM K9 |
Dimensions: | From 1mm~200mm |
Thickness: | From 0.2mm~100mm |
Tolerance: | Up to ±0.02mm |
Surface Quality: | S/D 80/50~10/5 Per Mil-Prt-13830 |
Surface Flatness: | Up to λ/20 @633nm |
Parallelism: | Up to 10 arcsec |
Edge Degree: | As Request |
Coating: | AR/ Reflective/ Cut Off/ Band Pass |
Product Description

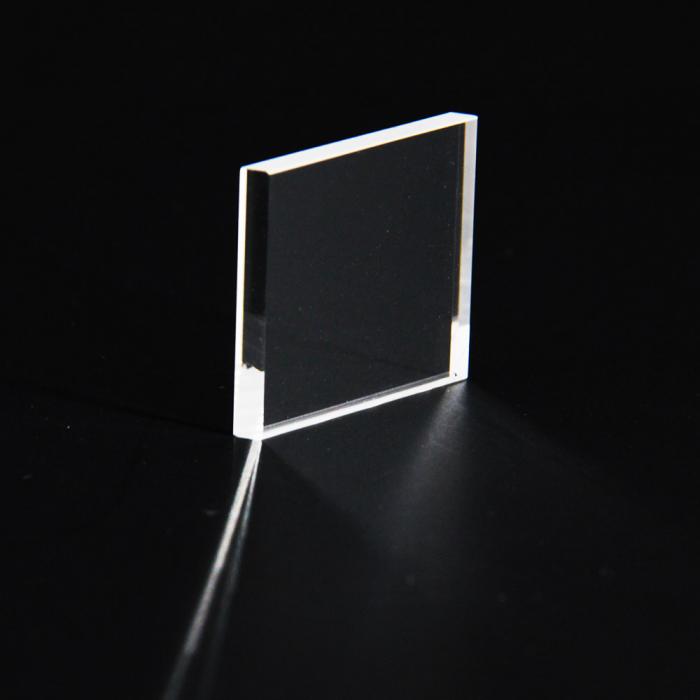

.Wedge Square Optical Window
.Materials:
Fit Optics can meet your precise machined specifications within the materials of BK7, Fused silica, Sapphire, Quartz, and Silicon.Please Just Send Us Your Parts Drawings, We Should Quote You In 24 Hours!
.Typical Applications:
1.Gas & Air Analyzers/Monitors,UV & IR Detectors;
2.Bar Code Readers
3.View Ports
