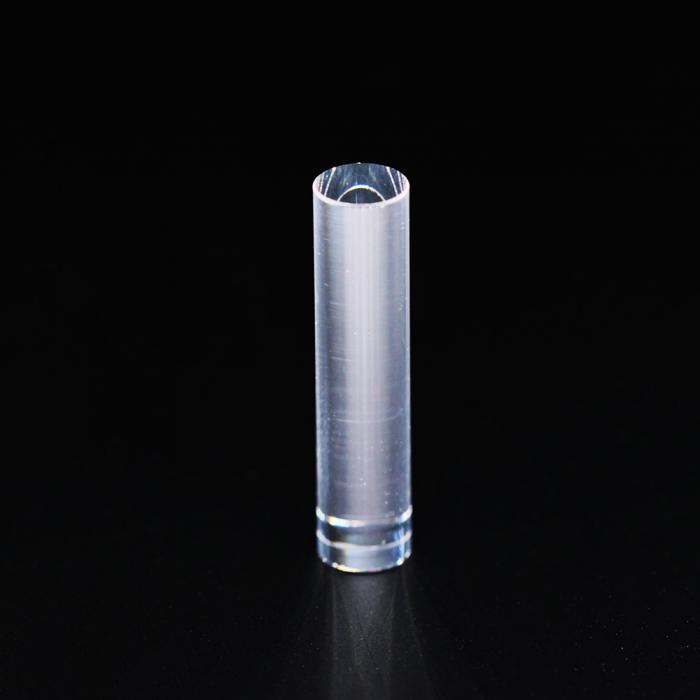

Name:Rod Lens
Materials:Sapphire/BK7/Quartz
Diameter:From 1mm~200mm
Length:From 1mm~300mm
Tolerance:Up to ±0.02mm
Surface Quality:S/D 80/50~10/5 Per Mil-Prt-13830
Surface Flatness:Up to λ/20 @633nm
Coating:As Request
Chamfer:As request angle or radius

Product Description

.Rod Lens


.What is Rod Lens:

Rod Lenses are a special variant of cylindrical lenses. They are complete rods where the light passes through the sides of the rod and focuses a line.  Rod lenses have an outside face that is polished and the ends ground. The table below gives angular lengths of the line for a 1mm diameter laser beam. Typical uses for rod lenses would be to generate a line image from a circular laser beam.


.Key Features Of Synthetic Sapphire:

1.Excellent Moh's Hardness Upto 9H, Only Softer Than Diamond(10H)

2.Great Transmittance From 200nm~5000nm; AVG>85% @ Visible Light Freqency

3.No Attacked By Acid Or Alkalis, Only Attacked By HF At 300℃.

4.High Softening Point, Low Thermal Expansion.

5.Excellent Mechnical Properties.


.Mean Types Of Rod Lenses:





.Typical Applications:

1.Gas & Air Analyzers/Monitors,UV & IR Detectors;

2.Piston;

3.High Power Laser System;

4.Pin

5.Rod Bearing
