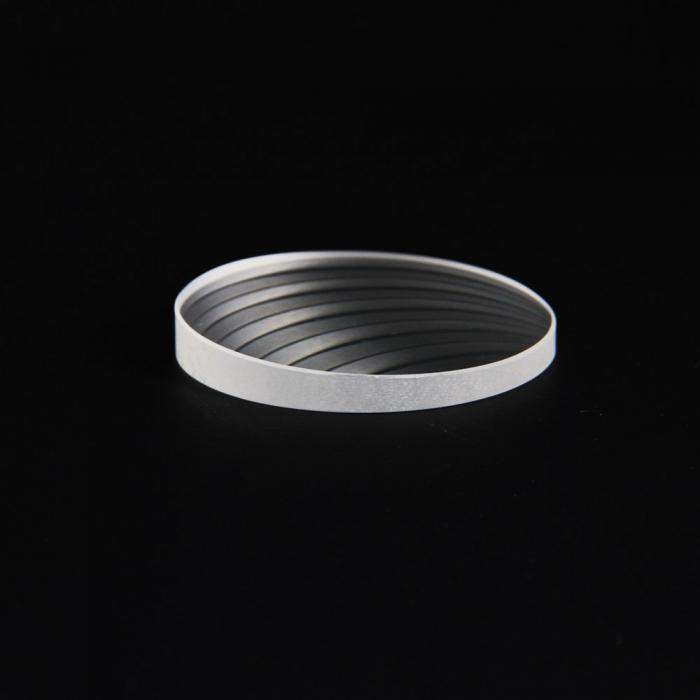

Name:Wedge Prism
Materials:Sapphire/BK7/Quartz
Diameter:From 1mm~200mm
Edge Thickness:From 1mm~50mm
Tolerance:Up to ±0.02mm
Surface Quality:S/D 80/50~10/5 Per Mil-Prt-13830
Surface Flatness:Up to λ/20 @633nm
Coating:As Request
Edge Degree:10°/15°/30°/45° Or Custom Angle
Chamfer:As request angle or radius

Product Description

.Optical Wedge Prism


.What Is Wedge Prism:

Wedge prisms can be used individually to deviate a laser beam a set angle, or two wedge prisms can be used together for beam steering applications. A single wedge prism's ability to deviate the angle of an incident beam is measured in Diopters with 1 diopter deviating the beam 1cm at a 1m working distance.

We can make custom angle wedge window as you wanted, the most common angles are :

15°/30°/45°


.Materials:

Fit Optics can meet your precise machined specifications within the materials of BK7, Fused silica, Sapphire, Quartz, and Silicon.Please Just Send Us Your Parts Drawings, We Should Quote You In 24 Hours!


.Customized Samples:


15°.jpg  30°.jpg 45°.jpg


Send Your Own Drawings


.Typical Applications:

1.Laser Application;

2.Opto-Electronic Parts;
