| Name: | Equilateral Prism |
|---|---|
| Materials: | Sapphire/BK7/Quartz |
| Dimensions: | From 1mm~300mm |
| Width: | From 1mm~300mm |
| Tolerance: | Up to ±0.02mm |
| Surface Quality: | S/D 80/50~10/5 Per Mil-Prt-13830 |
| Surface Flatness: | As request |
| Coating: | As Request |
| Chamfer: | As Request |
Product Description

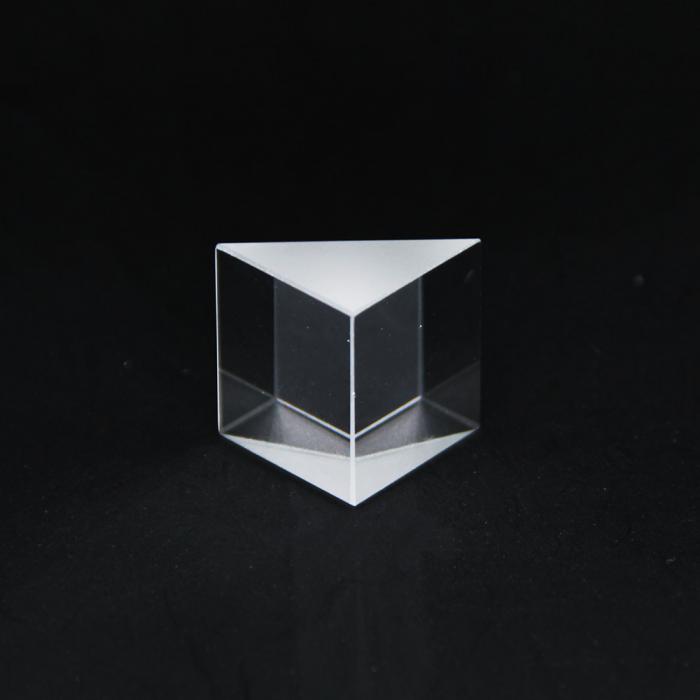

.Equilateral Prism
.What Is Equilateral Prism:
Equilateral prisms feature three equal 60° angles and are often referred to as dispersing prisms. Equilateral prisms are ideal for wavelength separating applications. Our Equilateral Prisms are available uncoated or with anti-reflection coating.

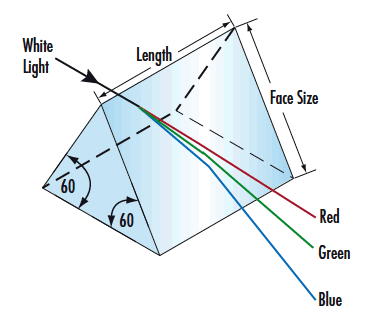

-Light Path Of Equilateral Prism
.Functions of Equilateral Prism:
1. Disperse White Light into Its Component Colors
.Typical Applications:
1. Spectroscopy
2. Telecommunications
3. Wavelength Separation
.For Different Choice Reason
1. I Want It Be Cheap And Cheap-BK7(K9) Is Your Best Choice.
2. Harsh Working Conditions- Sapphire Is Your Best Choice.
3. Special Transmission Request- Quartz And Other Material.
4. I Know What do I Want- Request For An Quotation From Us With Your Drawing!
