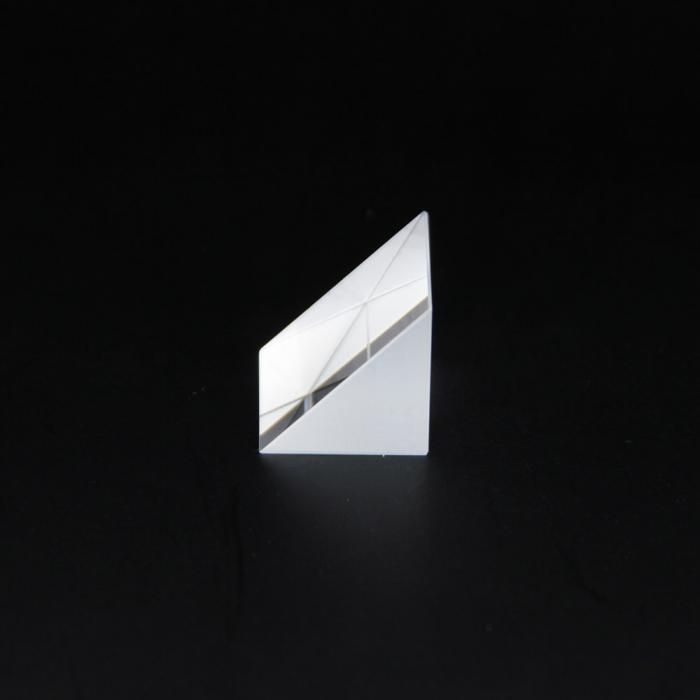

Name:Right Angle Prism
Materials:Sapphire/BK7/Quartz
Dimensions:From 1mm~300mm
Width:From 1mm~300mm
Tolerance:Up to ±0.02mm Angle 10arcsec
Surface Quality:S/D 80/50~10/5 Per Mil-Prt-13830
Surface Flatness:Up to λ/20 @633nm
Coating:As Request
Edge:As Request
Chamfer:As request angle or radius

Product Description

.Right Angle Prism


.What Is Right Angle Prism:

Right Angle Prisms are typically used to bend image paths or for redirecting light at 90°. Right Angle Prisms are Prisms designed with a 90° angle. Right Angle Prisms produce inverted or reverted left handed images, depending on the orientation of the prism. Using two Right Angle Prisms together is ideal for image or beam displacement applications. These prisms are also known as image reflection or reflecting prisms.

Right Angle Prisms.gif

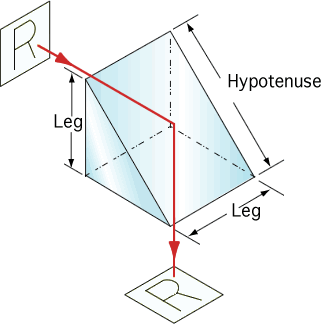

-Light Path Of Right Angle Prism

.Functions of Righ Angle Prism:

1. Deviate the Ray Path by 90°

2. Image is Left-Handed

3. Used in Combination for Image/Beam Displacement


.Typical Applications:

1. Endoscopy&Microscopy

2. Laser Alignment

3. Medical Instrumentation


.Different Materials

At Fit-Optics, You can get most kinds of Optical Glass. But depend on your own design, you should know which kind of material is best for you. Check the below information and you will figure it out!


-Transmission Capacity



-Basic Properties


.For Different  Choice Reason

1. I Want It Be Cheap And Cheap-BK7(K9) Is Your Best Choice.

2. Harsh Working Conditions- Sapphire Is Your Best Choice.

3. Special Transmission Request- Quartz And Other Material.

4. I Know What do I Want- Request For An Quotation From Us With Your Drawing!
