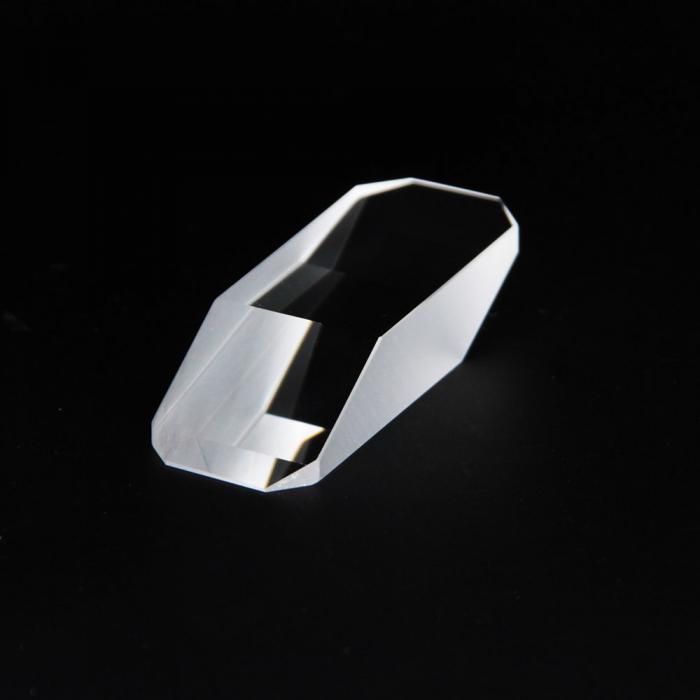

.Rhomboid Prism

.What Is Rhomboid Prism:

Rhomboid prism are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prism will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism (specified by dimension D). Our Optical Prism feature high tolerance angles that keep the output beam parallel to the input beam to within 30 arcseconds. They are ideal for demanding displacement applications.

-Light Path Of Rhomboid Prism

.Functions of Rhomboid Prism:

1. Displace Optical Axis without Changing Handedness

2. Direction Remains the Same (No Ray Deviation Occurs)

.Typical Applications:

1. Binoculars

2. Rangefinders

3. Laser Instrumentation

.Different Materials

At Fit-Optics, You can get most kinds of Optical Glass. But depend on your own design, you should know which kind of material is best for you. Check the below information and you will figure it out!

-Transmission Capacity

-Basic Properties

.For Different  Choice Reason

1. I Want It Be Cheap And Cheap-BK7(K9) Is Your Best Choice.

2. Harsh Working Conditions- Sapphire Is Your Best Choice.

3. Special Transmission Request- Quartz And Other Material.

4. I Know What do I Want- Request For An Quotation From Us With Your Drawing!
