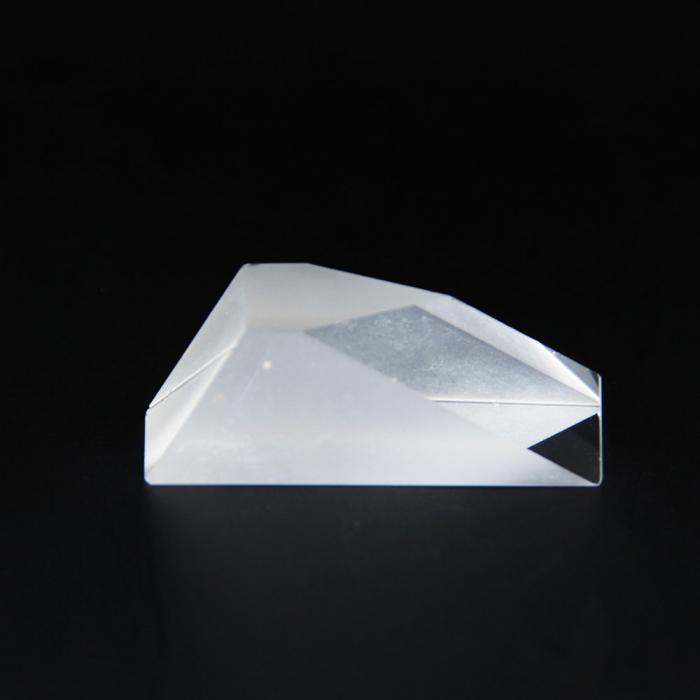

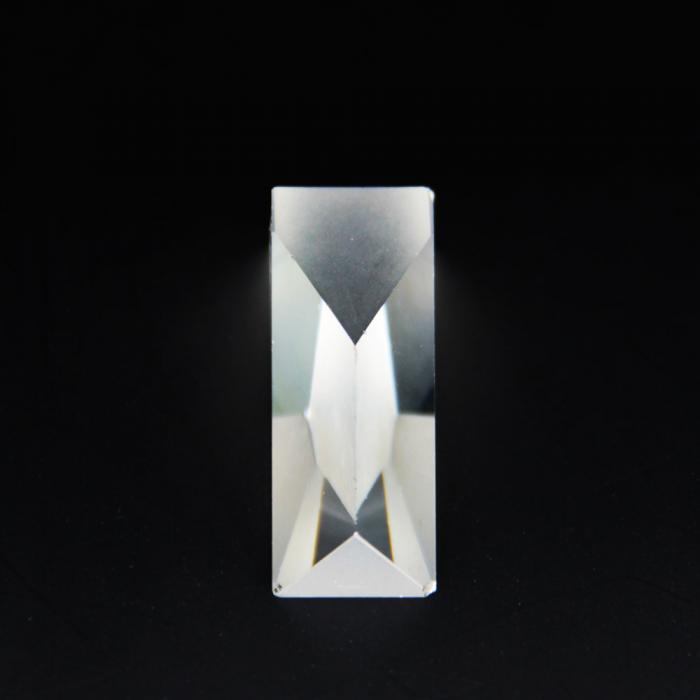

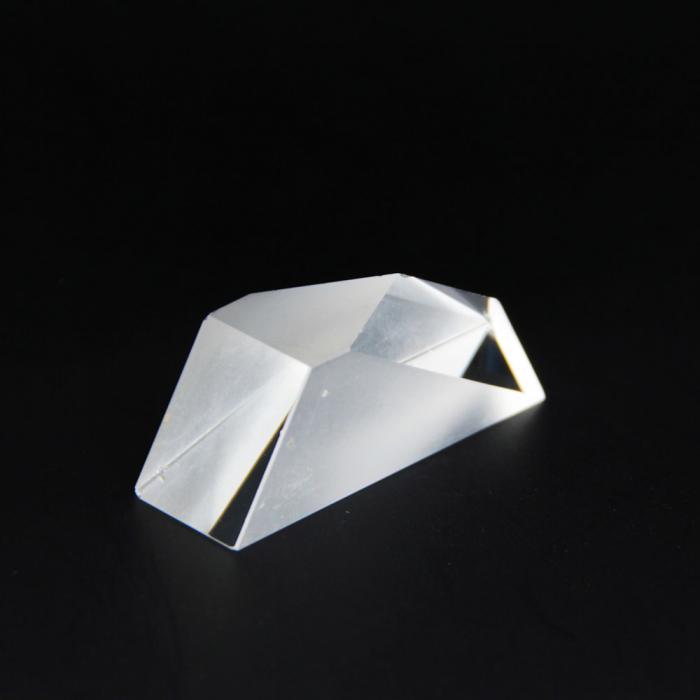

.Amici Roof Prism

.What Is Roof Prism:

Amici prism, also called “roof prism” or “right angle roof prism,” revert and invert the image as well as bend the line of sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation.

-Light Path Of Roof Prism

.Functions of Righ Angle Prism:

1. Deviate the Ray Path by 90°

2. Image is Right-Handed

.Typical Applications:

1. Microscopes

2. Telescope Eyepieces

3. Ray Deviation of 90°

4. Right Handed Image

.Different Materials

At Fit-Optics, You can get most kinds of Optical Glass. But depend on your own design, you should know which kind of material is best for you. Check the below information and you will figure it out!

-Transmission Capacity

-Basic Properties

.For Different  Choice Reason

1. I Want It Be Cheap And Cheap-BK7(K9) Is Your Best Choice.

2. Harsh Working Conditions- Sapphire Is Your Best Choice.

3. Special Transmission Request- Quartz And Other Material.

4. I Know What do I Want- Request For An Quotation From Us With Your Drawing!
